Public Utility Board (PUB) and Singapore National Water Agency
Kranji, Singapore
Retrofit of existing RO desalination facility
2017
10,680 m³/day
Operational
ROTEC’s Flow Reversal process was retrofitted into an existing RO system at PUB NEWater in Kranji, Singapore, increasing recovery from 75% to 90%, without interference or downtime of the plant during installation. The Flow Reversal process was monitored over the course of 18-months, demonstrating a significant increase in permeate production, while reducing chemical consumption.
The retrofit project was completed in a very short time, meeting budget and engineering specifications, with continuous successful operation.
As a result of the impressive demonstration at Kranji, ROTEC’s Flow Reversal technology was implemented in PUB’s TUAS Water Reclamation Project – one of the largest wastewater reuse facilities in the world.
PUB, a global pioneer and world leader in the water desalination field, renowned as an “early adopter” of new technologies, was constantly looking for ways to increase water production from their NEWater wastewater treatment desalination plants which were limited to a 75% recovery rate due to the relatively high concentration of calcium, phosphate, iron and organics.
The PUB delegation visited Shafdan, the largest municipal wastewater treatment facility in Israel in 2015. During the visit, ROTEC demonstrated one of its Flow Reversal RO systems on tertiary wastewater at an unprecedented 90% recovery rate. The company was impressed with ROTEC’s proprietary game-changing technology, our professional team of experts, along with their agility and care, and decided to implement it. ROTEC was granted a retrofit of an existing Kranji NEWater desalination plant, providing 450 m³/day water in Singapore, for the purpose of increasing its recovery rate from 75% to 85-90%, while minimizing risk and downtime.

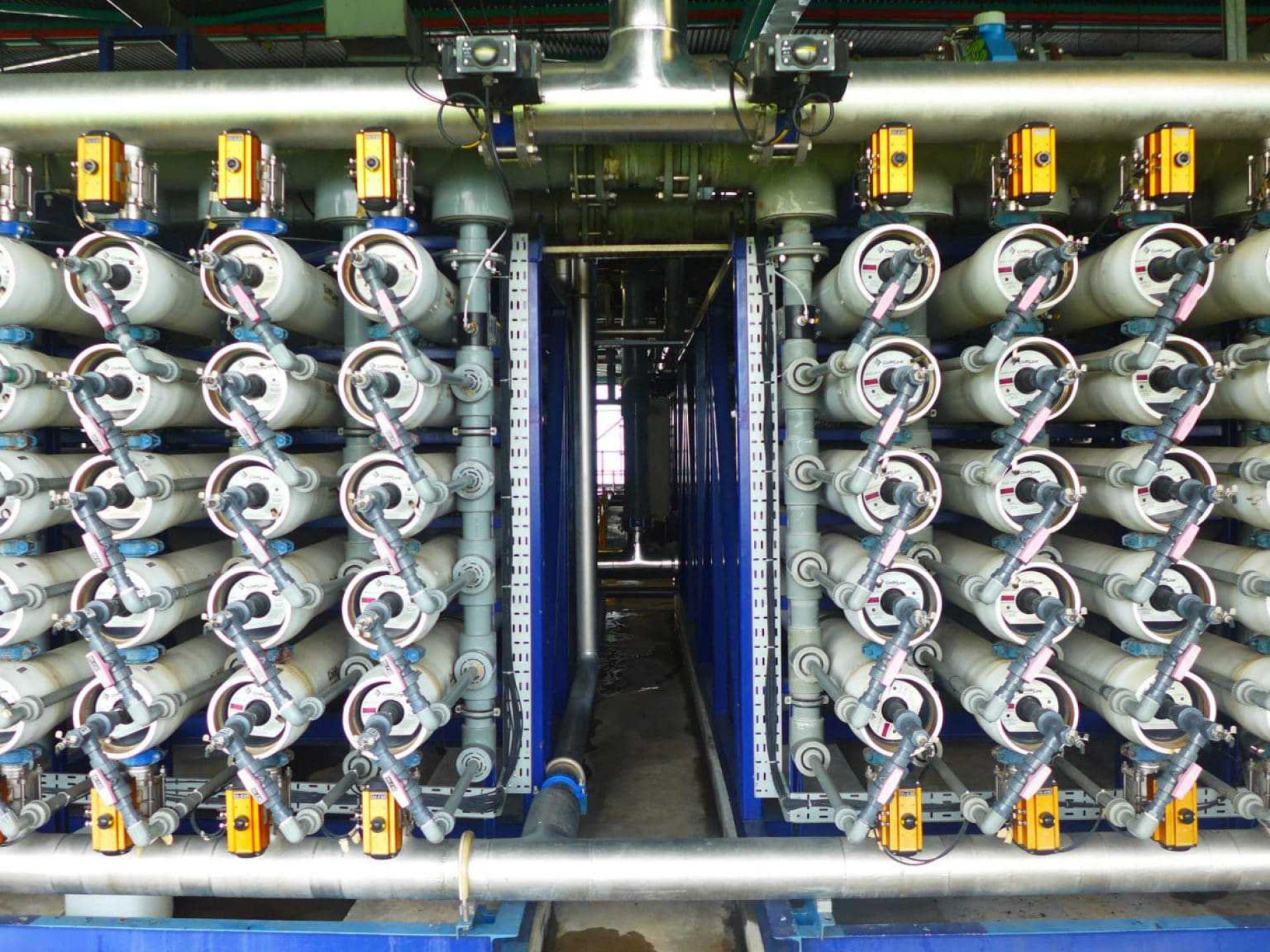

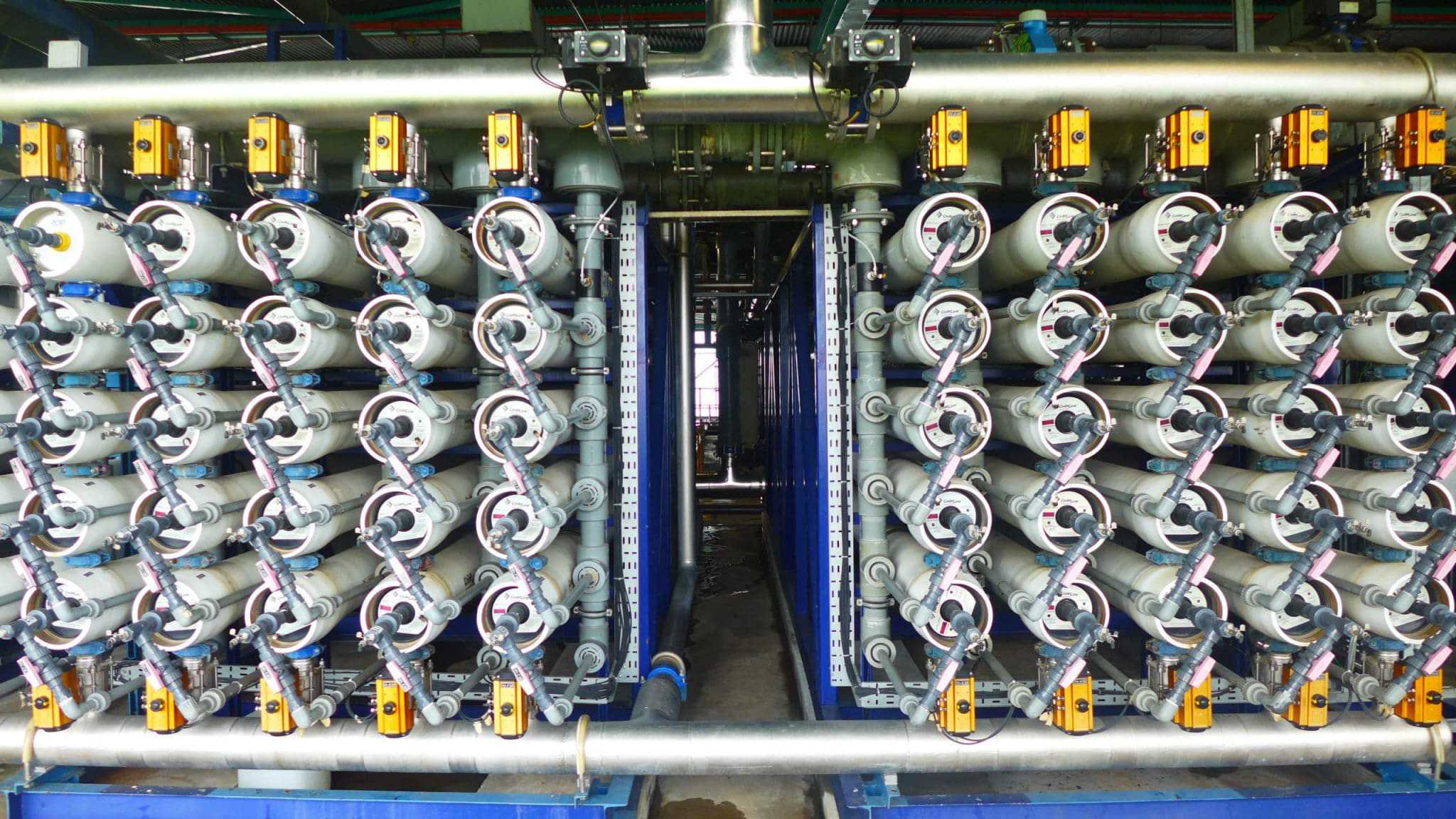

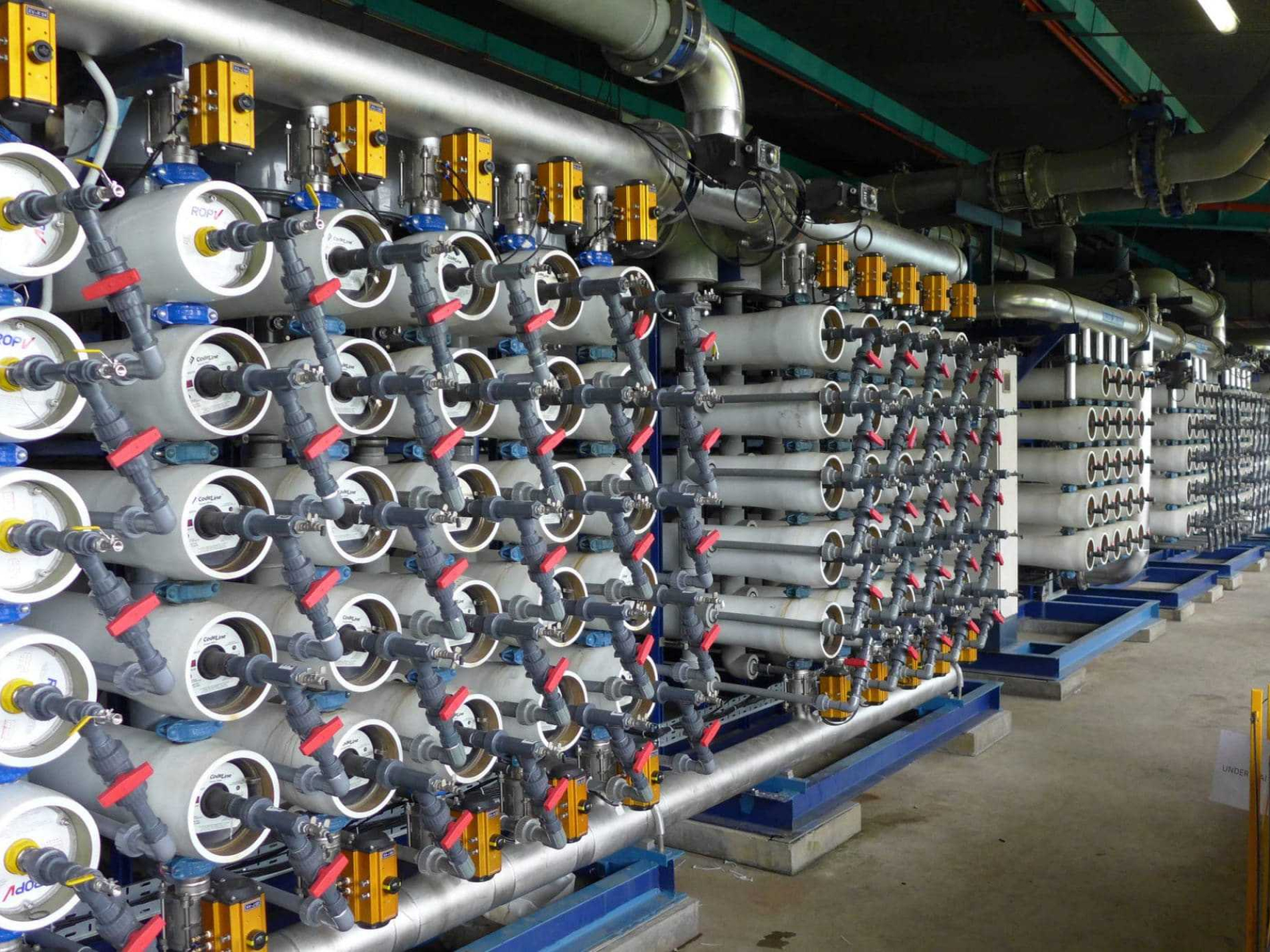

ROTEC’s Flow Reversal process was retrofitted into an existing RO system. A two-staged array system was retrofitted to a three-stage system, without interference or downtime of the plant during installation.
The main challenges in increasing the recovery rate were the formation of mineral scaling (mainly saturation of CaPO4 and BaSO4) and a design limitation involving operating with the current two-staged array at higher process recovery (lower brine flowrate results in a high Beta factor). In order to address these challenges, the ROTEC retrofit design comprised the following:
– Modification of the RO system from current two stages (49:24) to retrofitted three stages (45:25:10).

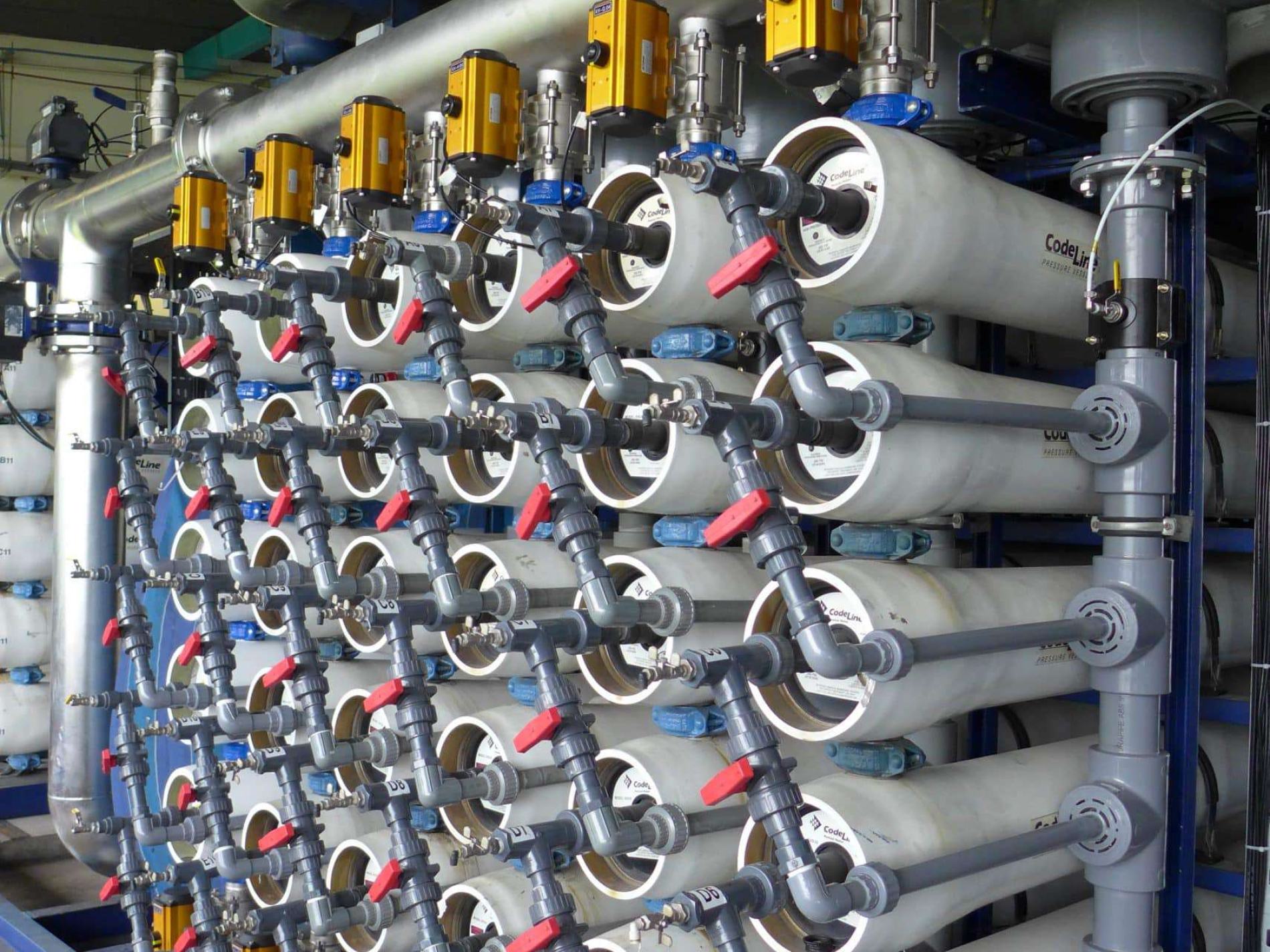

– Applying Flow Reversal technology via added pneumatic valves and the ROTEC program to periodically reverse the flow between the 1st stage and the 3rd stage pressure vessel.
The increased recovery from 75% to 90% enabled by the ROTEC retrofit, led to the following benefits:
ROTEC boldly and vigorously pushed the boundaries of desalination to new levels, delivering clear water value and enhanced peace of mind.
