The Impact of FR-RO on Municipal Wastewater
As urban populations grow and water scarcity intensifies, municipalities face increasing pressure to optimize wastewater management. Rising operational costs, new regulations for indirect and direct potable reuse, and environmental concerns around brine disposal require innovative solutions to meet sustainability goals. Traditional Reverse Osmosis (RO) systems, while effective, often struggle with low recovery rates, scaling, and high maintenance requirements, limiting their effectiveness in municipal wastewater treatment.
Flow Reversal Reverse Osmosis (FR-RO) provides an advanced solution to these challenges. By improving recovery rates, minimizing brine waste, and enhancing operational efficiency, FR-RO is transforming how municipalities approach wastewater reuse, enabling sustainable water management at scale.
The Problem: Challenges in Municipal Wastewater Treatment
Municipal water utilities face several significant challenges when it comes to wastewater treatment:
- Low Recovery Rates: Traditional RO systems often achieve recovery rates of only 75-80%, limiting water reuse potential and increasing brine volumes.
- Scaling and Fouling Issues: High concentrations of calcium phosphate (CaPO₄) and microorganisms lead to scaling and membrane fouling, reducing system performance and increasing cleaning frequency.
- High Brine Disposal Costs: Managing brine waste is costly and environmentally taxing, particularly due to the pumping and treatment costs associated with recycling it within the wastewater plant.
- Operational Inefficiencies: Frequent Clean-in-Place (CIP) requirements and membrane replacements cause downtime, increasing operational costs and reducing system reliability.
The Solution: FR-RO Technology
FR-RO overcomes the limitations of traditional RO systems by addressing scaling, recovery efficiency, and operational performance.
How FR-RO Works:
- Block Rotation: FR-RO technology periodically reverses flow patterns between membrane stages, evenly distributing the scaling burden across all membrane elements. This prevents localized scaling, resists the proliferation of microorganisms, reduces cleaning frequency, and extends membrane life
- Handling Challenging Wastewater: FR-RO excels in treating wastewater with high Total Dissolved Solids (TDS)scaling compounds like CaPO₄, and microorganisms that cause biofouling. This makes it ideal for demanding municipal wastewater conditions.
- Optimized Recovery: By reducing scaling risks, FR-RO can achieve recovery rates of 90-95%, far surpassing conventional RO systems.
The Results: Real-World Impact at PUB’s Kranji Water Reclamation Plant

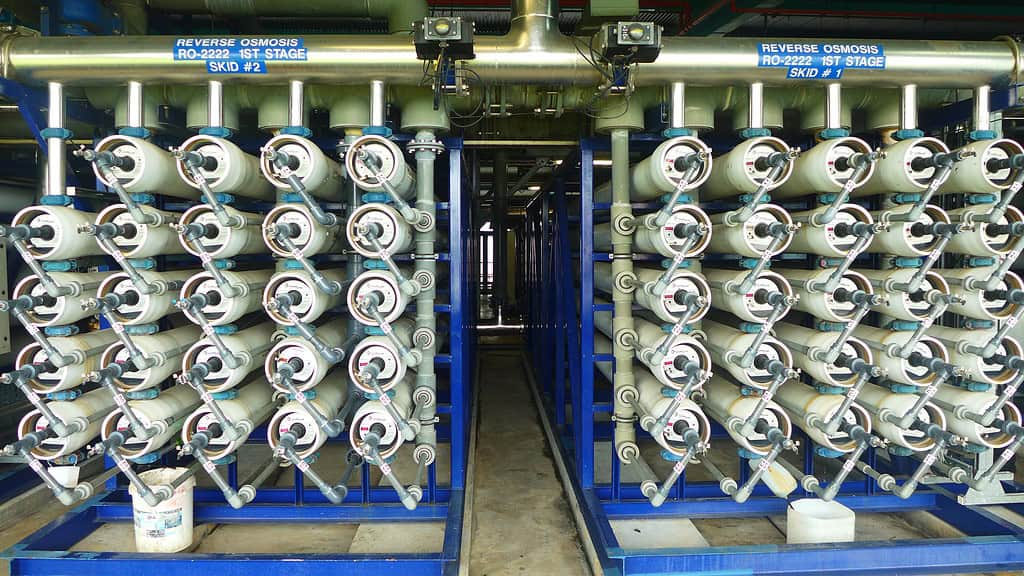

A prime example of FR-RO’s success is the Kranji Water Reclamation Plant (WRP) in Singapore, operated by PUB, the national water agency. The existing RO system at Kranji faced significant challenges, including:
- Low recovery rates (75%) that limited water production.
- High scaling risks due to calcium phosphate and barium sulfate.
- Frequent cleaning cycles leading to increased downtime.

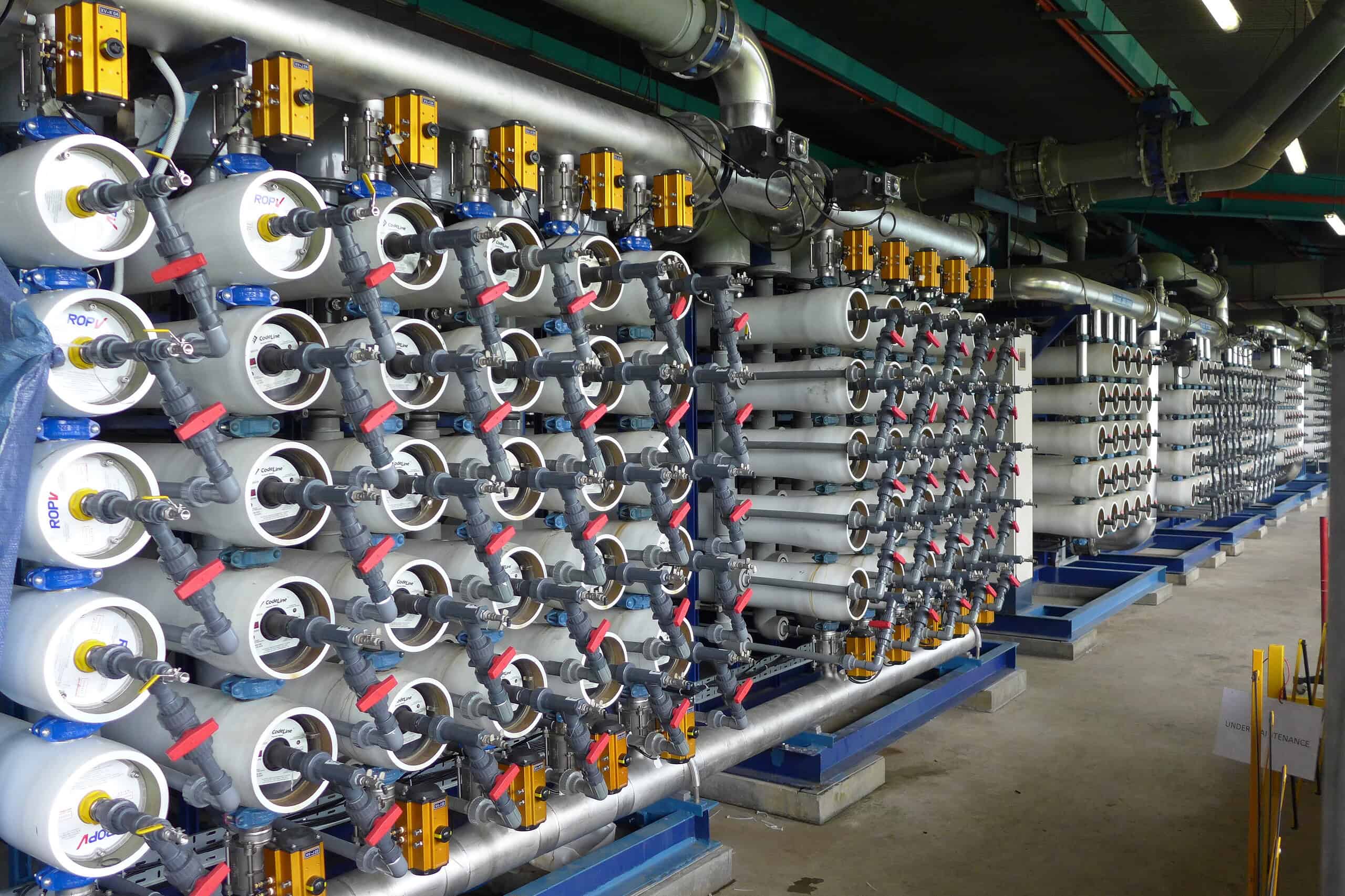

ROTEC retrofitted the existing system with its patented FR-RO technology, reconfiguring the design from a two-stage array to a three-stage (45:25:10) system. The retrofit included pneumatic valves and an advanced control program, resulting in a 20% increase in water production, boosting permeate output to 9,828 m³/day (~2.6 MGD or ~1,808 GPM).
- 60% reduction in brine waste, significantly lowering disposal costs and environmental impact.
- 60-70% decrease in cleaning frequency (CIP), minimizing downtime and reducing chemical use.
- Stable operation at 90% recovery, validated over 18 months of continuous monitoring.
FR-RO technology is a transformative solution for municipal wastewater reuse, delivering higher recovery rates, reduced brine waste, and greater operational efficiency. The success of PUB’s Kranji Water Reclamation Plant demonstrates its real-world impact, positioning FR-RO as a reliable choice for municipalities seeking sustainable water management solutions.
